Modern Footbridge. v.3

Modern Style Footbridge.. v.3

Double or Single track.    OO Gauge 4mm - 1/76 scale.

  ** This is the same Bridge design as our product BC02 concrete Version v.2 - But this v.3 kit has the Metal Frame style truss detail.

History- This bridge is based on modern structures from Network rails modern improvmnets scheme up and down the East/West Coast Main Line and as featured down the south - also allowing high clearence for overhead powered centenary.

Overall outer size 190mm-L x 155mm-D x 93mm-H.

Inner bridge aperture 130mm-L x 67mm-H - (83mm to track.)

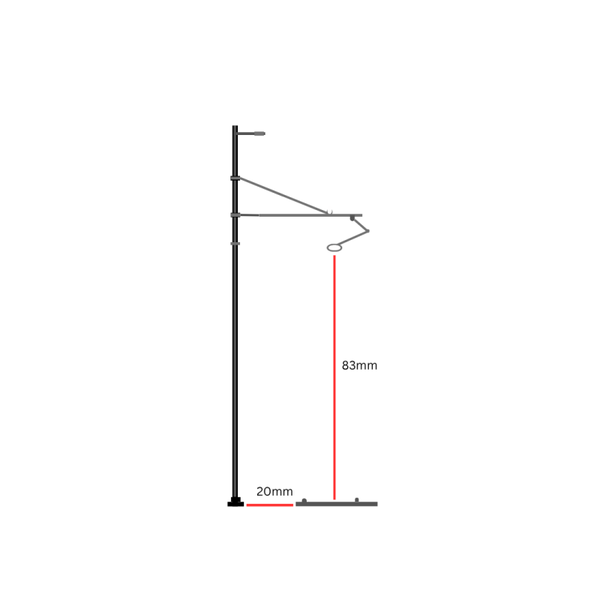

This Bridge is 190mm wide and approximately 67.5mm centre clearence from platform to bridge walk way.  This give the correct overall height of 83mm clearance for overhead cantenary down to the track.

Suits / Ground level or Platform level if using overhead power.

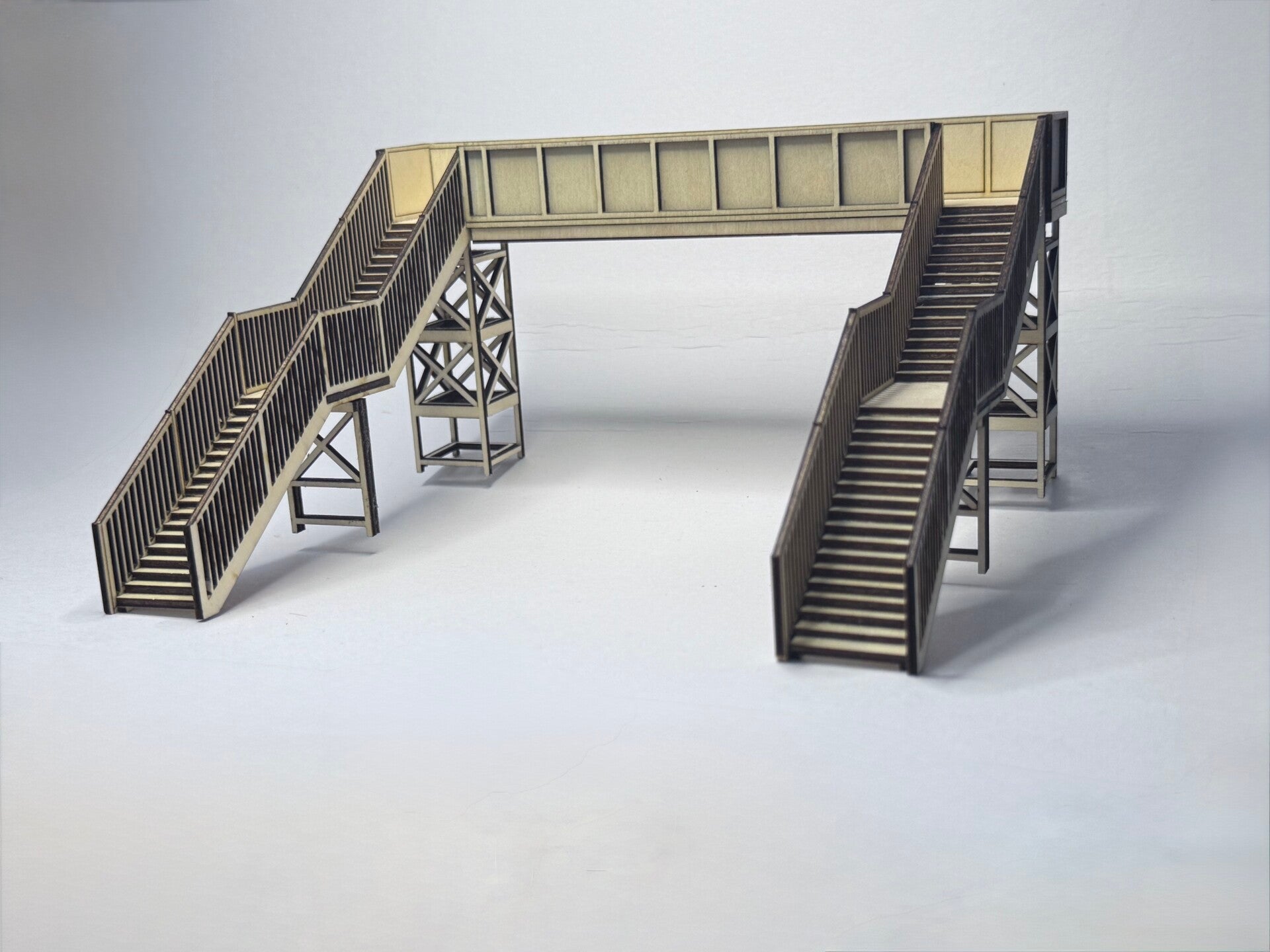

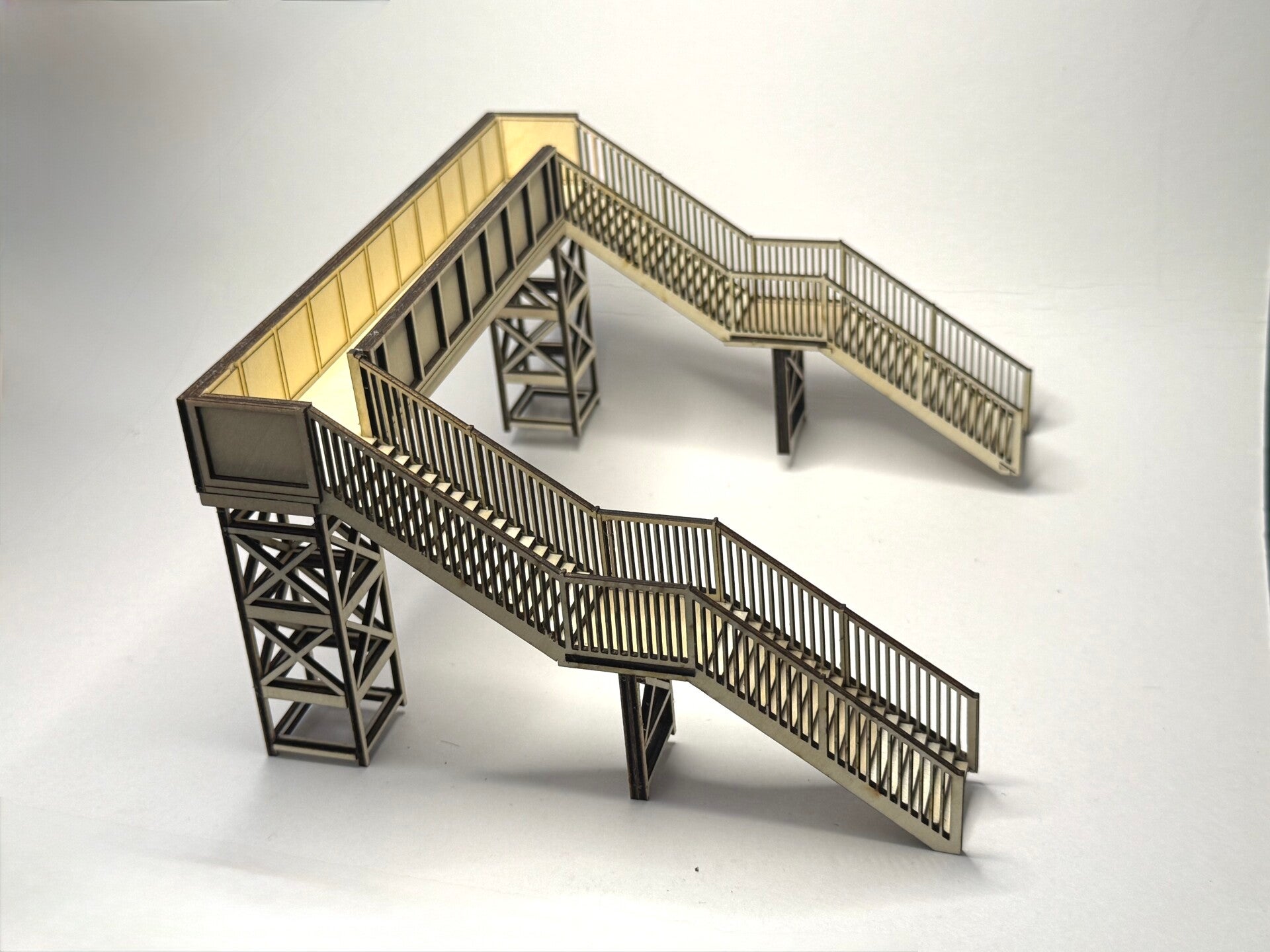

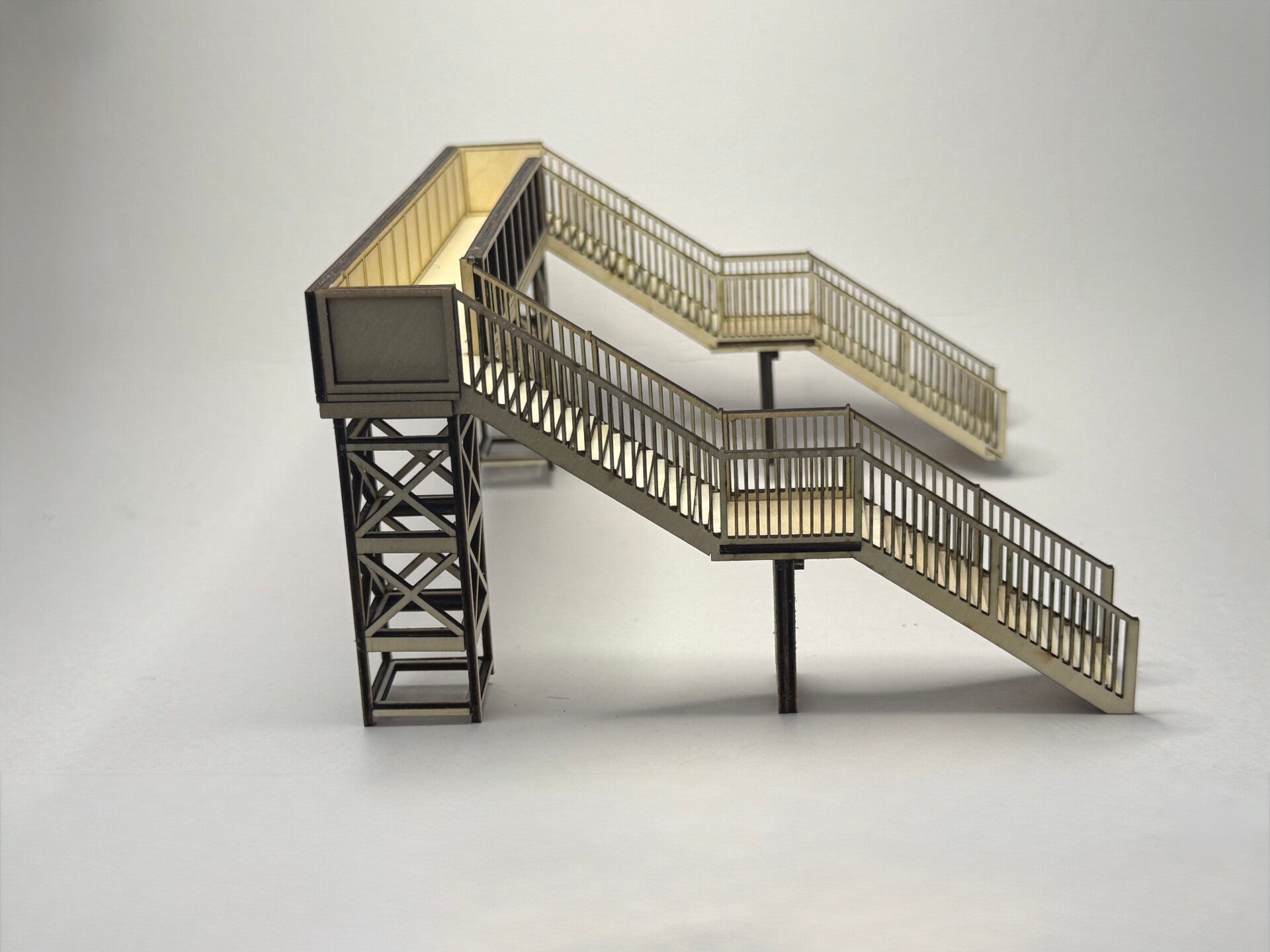

• This v.3 Kit features metal frame style leg supports.
• All precision quality laser-cut basswood footbridge.
• Available as assembled, or self-assemble home kit build.
• Etched inner details with etched outer with laser-cut detailing when complete.
• Step alignment tool and box jigs included for the very best of expierence of making our modeling kits.
• Delivery or Collection on this item..

Instructions are available to download. Download your view or print at home instructions.

   - Modern Bridge Instructions & Tower Instructions.

We have custom shipping boses for made up items so this can be pre-made for order by myself Garry / Delivery or Collection option available.
