Modern Footbridge. v.2

Modern Style Footbridge.. v.2   (Product ID - BC02)

Double or Single track.    OO Gauge 4mm - 1/76 scale.

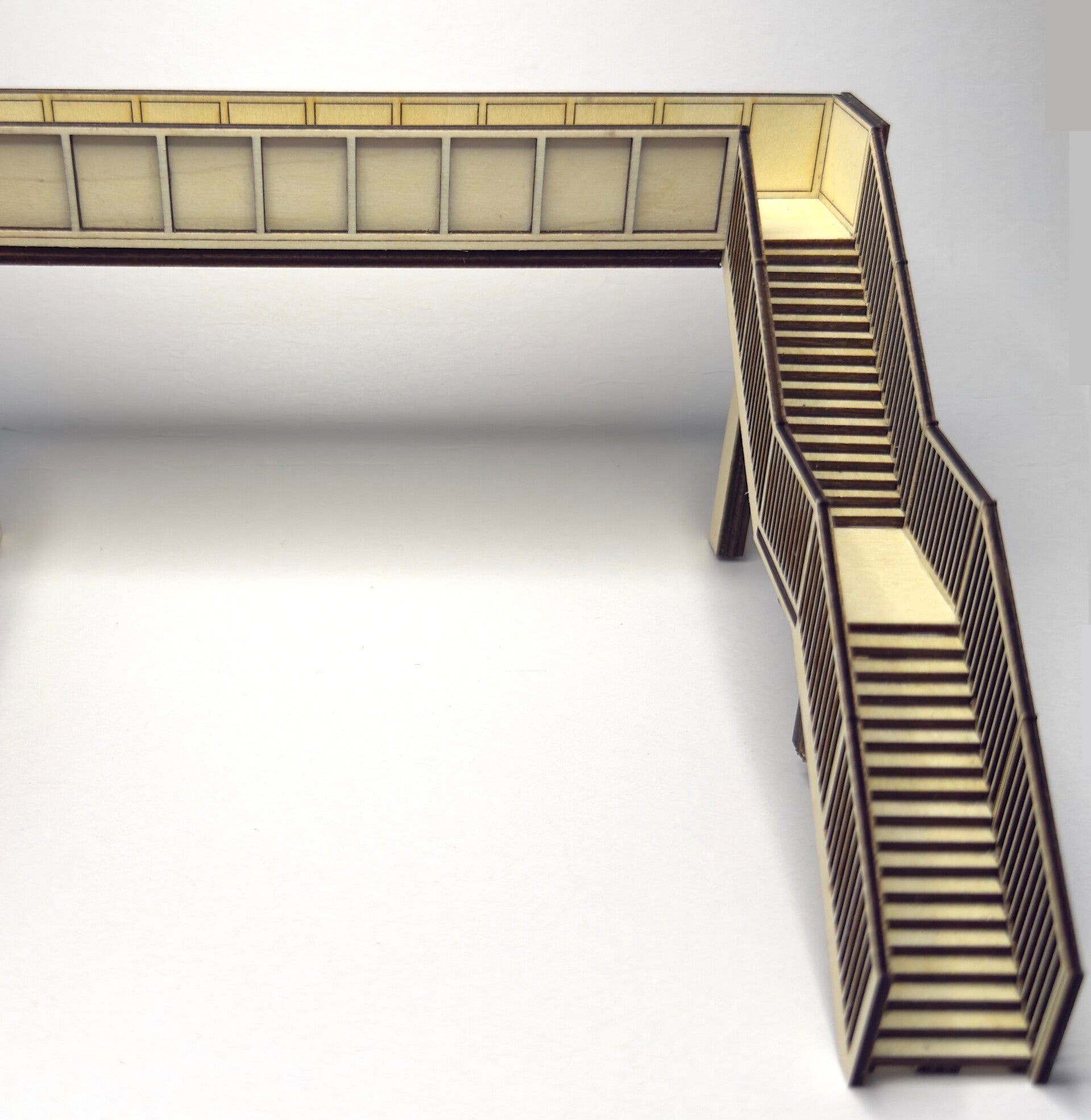

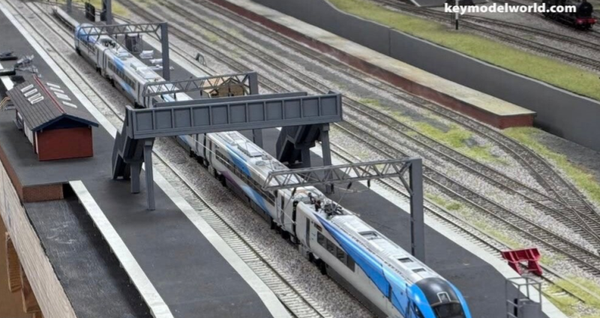

** This is the our modern style footbridge V.2 with concrete pillars as featured on the Hornby Magazine's East Coast Cement exhibition layout.

History - This bridge is based one of the many structures up and down the East/West Coast Main Line and now includes the south, mainly designed for platform standing for high clearence for overhead centenary, but also sits perfectly for track bed level mounting as seen all over the country under Network Rail.

Overall outer size 190mm-L x 155mm-D x 93mm-H.

Inner bridge aperture 130mm-L x 67mm-H - (83mm to track.)

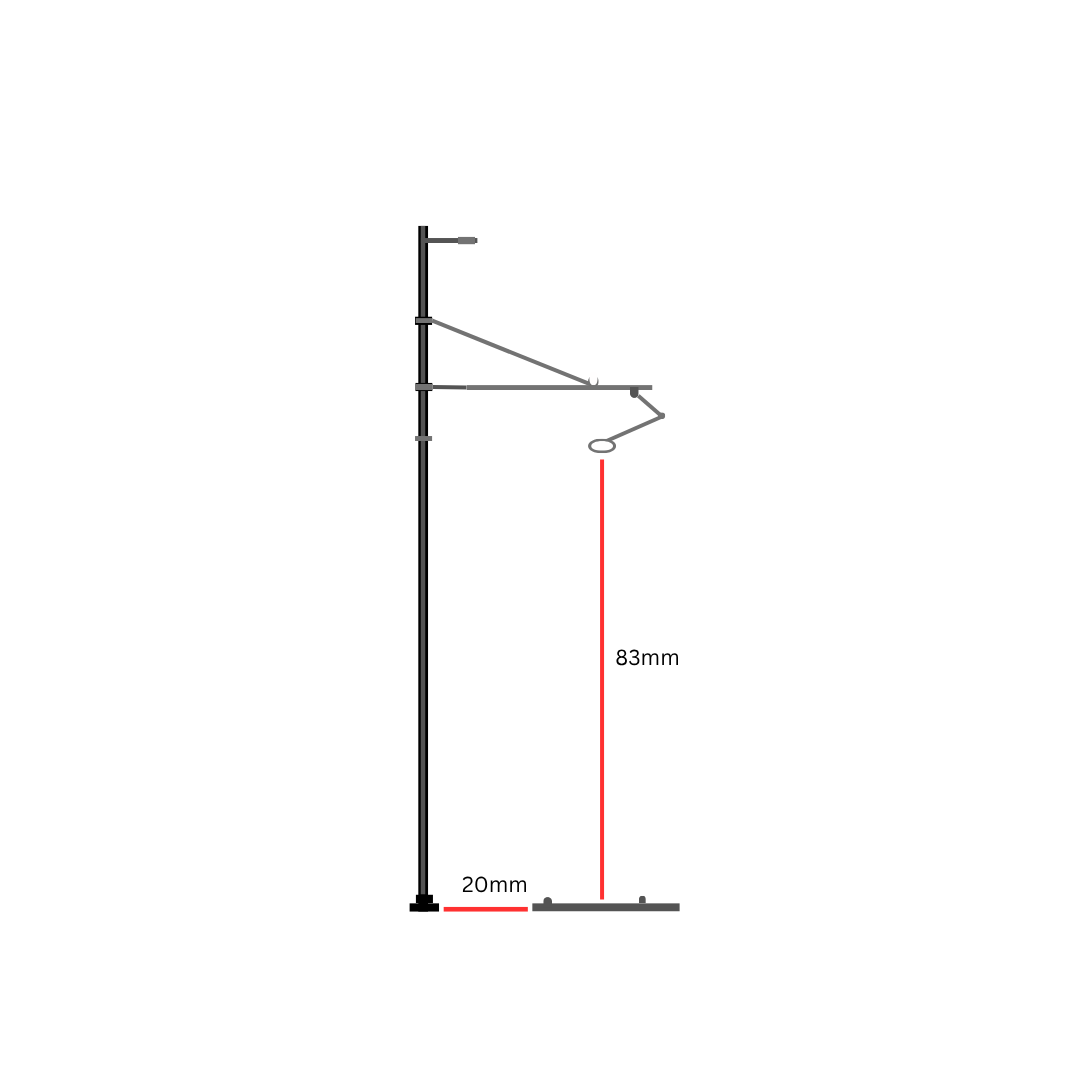

This Bridge is 190mm wide and approximately 67.5mm centre clearence from platform to bridge walk way.  This give the correct overall height of 83mm clearance for overhead cantenary down to the track.

Suits / Ground level without power lines, and at Platform level if using dummy overhead power configuration.

Our V.3 bridge, (Product ID - BCG03) is same bridge design, but with the addition of Laser-cut Basswood / metal frame style truss tower to supports.

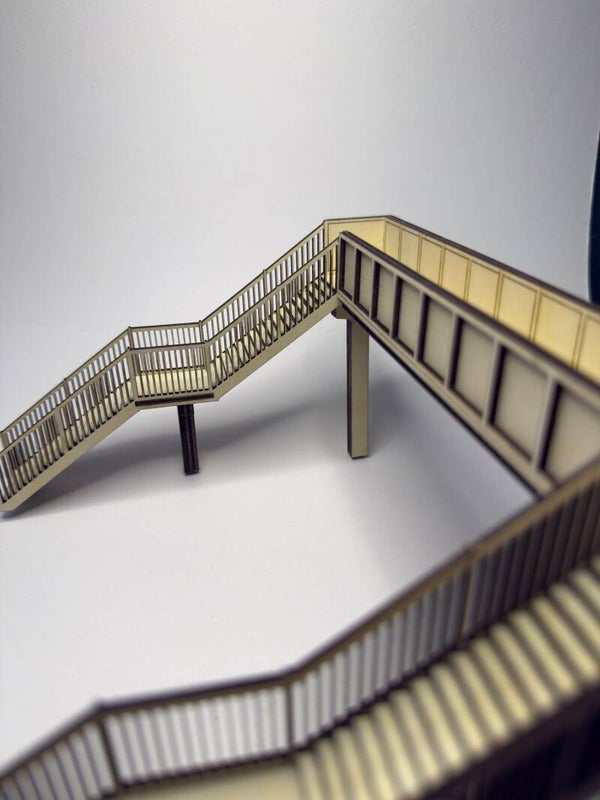

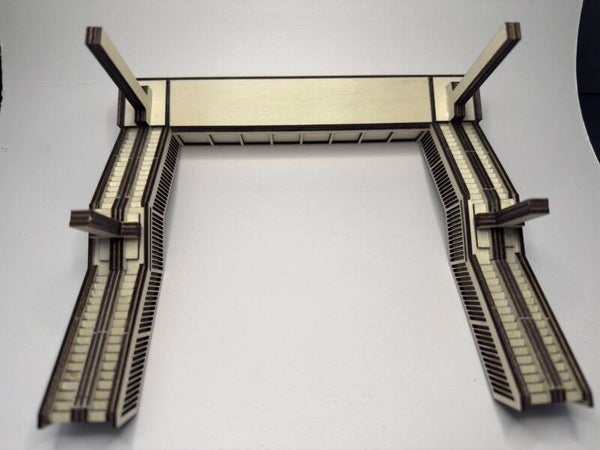

• This V.2 Kit features- Concrete style leg supports.
• Precision quality laser-cut wood.
• Light but strong, Basswood sheets constution.
• available as assembled or self-assemble home kit build.
• Etched inner details with etch outter & laser cut detailing when complete.
• Step alignment tool and box jigs included for the very best of expierence of making our modeling kits.
• Peace of mind buying from cheekytek with our outstanding service and easy after sales.

Delivery Shipping

We have custom build cradle shipping boxes for any made-to-order kits. Available as Kits Build or Pre-Ordered built and shipped though cheekytek.

Instructions are available to download. Download your view or print at home instructions.

   - Modern Bridge Instructions.

COMMISSIONS ARE WELCOME - This product can be customised and taylored to suit your own Railway Layout.

Note: This bridge design was adapted as the commission for New Junction - Youtube Channel. Please note this is our unique original-version that.
